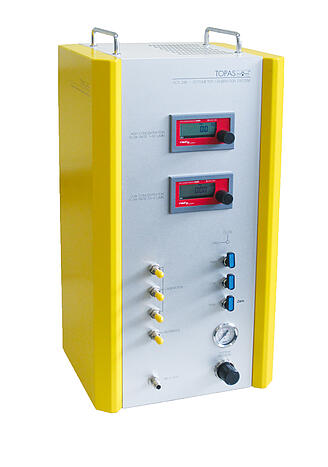

FCS 248 Fotometer Calibration System
Fotometer-Calibration-System FCS 248 for aerosol generation from liquids, ideal for calibration of aerosol fotometers and particle counters
The FCS 248 Fotometer-Calibration-System generates stable and reproducible test aerosols for calibration of photometers and particle counters.
The calibration is based on the comparison of three devices to be calibrated. The centerpiece is a special aerosol generator, which is controlled by additional instrumentation. As an aerosol substance DEHS is used. The atomization of the aerosol substance is made using special two-fluid nozzles. By an adjustable carrier air flow and precise needle valves, the particle concentration can be varied over a wide range.
download
product sheet FCS 248Benefits
- particle concentration adjustable over a wide range (DEHS)
- carrier air flow up to 100 L/min
- compact housing for mobile use
- battery operation possible
- possibility to connect up to three devices to be calibrated
Applications
- calibration of photometers for concentrations up to 1 g/m³
- calibration of particle counters and aerosol spectrometers
| Parameter title | Unit | Value |
|---|---|---|
| setting parameter | system pressure | type of nozzle | quantity of nozzles | |
| setting range | - | max. 6 bar (system pressure) | small resp. large nozzle (type of nozzle) | individual or combined (nozzle quantity) |
| setting method | - | manual |
| aerosol, volumetric flow rate | L/h | 1200 ... 6000 |
| aerosol, concentration | g/m³ | max. 1 |
| operating medium, gas/air | - | dry, particle-free compressed air |
| operating medium, gas/air - compressed air supply | bar | max. 6 |
| operating medium, aerosol substance | - | liquids (DEHS, ...), solutions (NaCl, KCl, ...), suspensions (PSL, ...) |
| operating medium, aerosol substance - filling volume | mL | 200 ... 500 |
| power supply | - | 24 V DC (incl. power adapter or battery) |
| other | - | 3 ports for units under test + 1 port for reference device |
| hose connector, outlet for units under test | mm | Ø 6 (outer diameter) , Ø 3 (inner diameter) |
| hose connector, outlet for exhaust | mm | Ø 16 (outer diameter), Ø 14 (inner diameter) |
| dimensions (w × h × d) | mm | 300 × 550 × 250 |
| weight | kg | 15 |
- aerosol substance DEHS
- other aerosol substances on request
