Testing filter media
We determine the parameters that matter
The testing of filter media is important for the development and optimisation of filter materials, as well as for quality assurance during filter production. Increasing quality requirements for filtration solutions make it necessary to better understand the characteristics of the filter media used. In addition to the long-established filtration applications, this has recently also affected personal protective equipment and room air cleaners. At the same time, interest in this area is also being intensified by new mobility concepts such as e-mobility and fuel cell technology. We are also increasing our activities in this field and will be happy to support you with our expertise in the field of material analysis.
As a filter media manufacturer, you design your media as required by your customers’ specific applications. The filter media are tailored to the specific application in terms of their pressure drop behaviour and separation efficiency. In pore size analyses and efficiency measurements, we provide you with the specifications and characteristics that are important to you. In addition, our technologies can be used in the testing of cleanable filter media and mask media.
Applications for testing filter media
FILTERS ARE NOT BETTER THAN THEIR MEDIA.
CHECK THEM.
Our technical solution
AFC 131

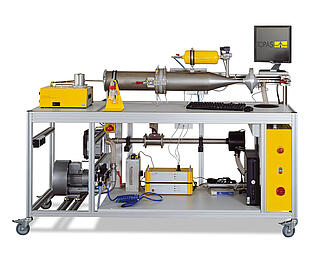

AFC 131 Test System for characterisation of cleanable filter media acc. VDI 3926-2
AFC 132
AFC132 Test System for characterisation of filter media and small filter elements
AFC 133
AFC 133 Test System for characterisation of cleanable filter media according to ISO 11057
ATM 240/L
Atomizer Aerosol Generator ATM 240/L for aerosol generation from liquids, compressed air operated, high mass flow rate, ideal for PSL aerosols acc. ISO 29463
ATM 240/S
Atomizer Aerosol Generator ATM 240/S for aerosol generation from liquids, compressed air operated, high mass flow rate, ideal for KCl aerosols acc. ISO 16890
DIL 540/B
DIL 540/B Dilution System for static dilution (1:100) of aerosols at static air flow rate (28,3 L/min), with pneumatic-induced switch
DIL 541/B
DIL 541/B Dilution System for static dilution (1:10) of aerosols at static air flow rate (28,3 L/min) with pneumatic-induced switch
DIL 545/B
DIL 545/B Dilution Systemfor static dilution (1:100) of aerosols at static air flow rate (2,83 L/min) with pneumatic-induced switch
DIL 546/B
DIL 546/B Dilution System for static dilution (1:10) of aerosols at static air flow rate (2,83 L/min) with pneumatic-induced switch
MBP 116
MBP 116 Test System for multiple parameter testing at filter media, space-saving design by vertical-orientated flow channel
PSM 165
PSM 165 Pore Size Meter for analysis of pore size distributions of woven, non-woven fabrics and open-pore samples
